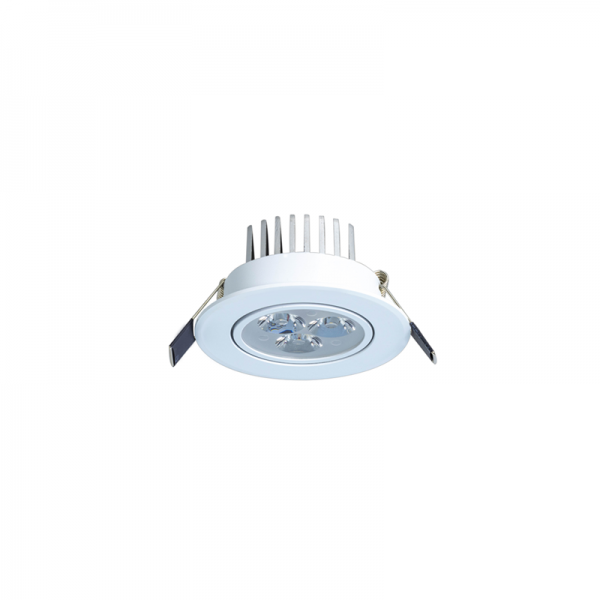

In stockThis complete product family delivers various product dimensions and lumen options along with higher system efficacy and excellent lighting uniformity
| Colour | Cool White, Natural White, Warm White |
|---|---|
| Wattage | 03W, 05W, 07W, 09W, 12W, 15W, 18W |
| Material | Die cast Aluminium with Glass and TIR lens | |
| Body Color | White | |
| Light Source | Bridgelux | |
| Rated Luminous Efficacy | 100-120 Lm/W | |
| LED Life Time | >50000 Hrs | |
| Input Voltage | AC 220-240V | |
| Input Frequency | 50-60 Hz | |
| Efficiency | 90% | |
| IP Rating | IP44 |
| Model No. | Power (W) | Lumens | CCT (K) | CRI | Beam Angle | Dimension (mm) | |||
| WB-FL-EY-03 | 3W | 300lms±10% | 3000K,4000K,6500K | >80 | 60º | D:84, H:44, C:64 | |||
| WB-FL-EY-05 | 5W | 500lms±10% | 3000K,4000K,6500K | >80 | 60º | D:106, H:43, C:85 | |||
| WB-FL-EY-07 | 7W | 700lms±10% | 3000K,4000K,6500K | >80 | 60º | D:106, H:43, C:85 | |||
| WB-FL-EY-09 | 9W | 900lms±10% | 3000K,4000K,6500K | >80 | 60º | D:137, H:44, C:107 | |||
| WB-FL-EY-12 | 12W | 1200lms±10% | 3000K,4000K,6500K | >80 | 60º | D:137, H:44, C:107 | |||
| WB-FL-EY-15 | 15W | 1500lms±10% | 3000K,4000K,6500K | >80 | 60º | D:157, H:45, C:126 | |||
| WB-FL-EY-18 | 18W | 1800lms±10% | 3000K,4000K,6500K | >80 | 60º | D:157, H:45, C:126 |
*D=Diameter; H=Height
